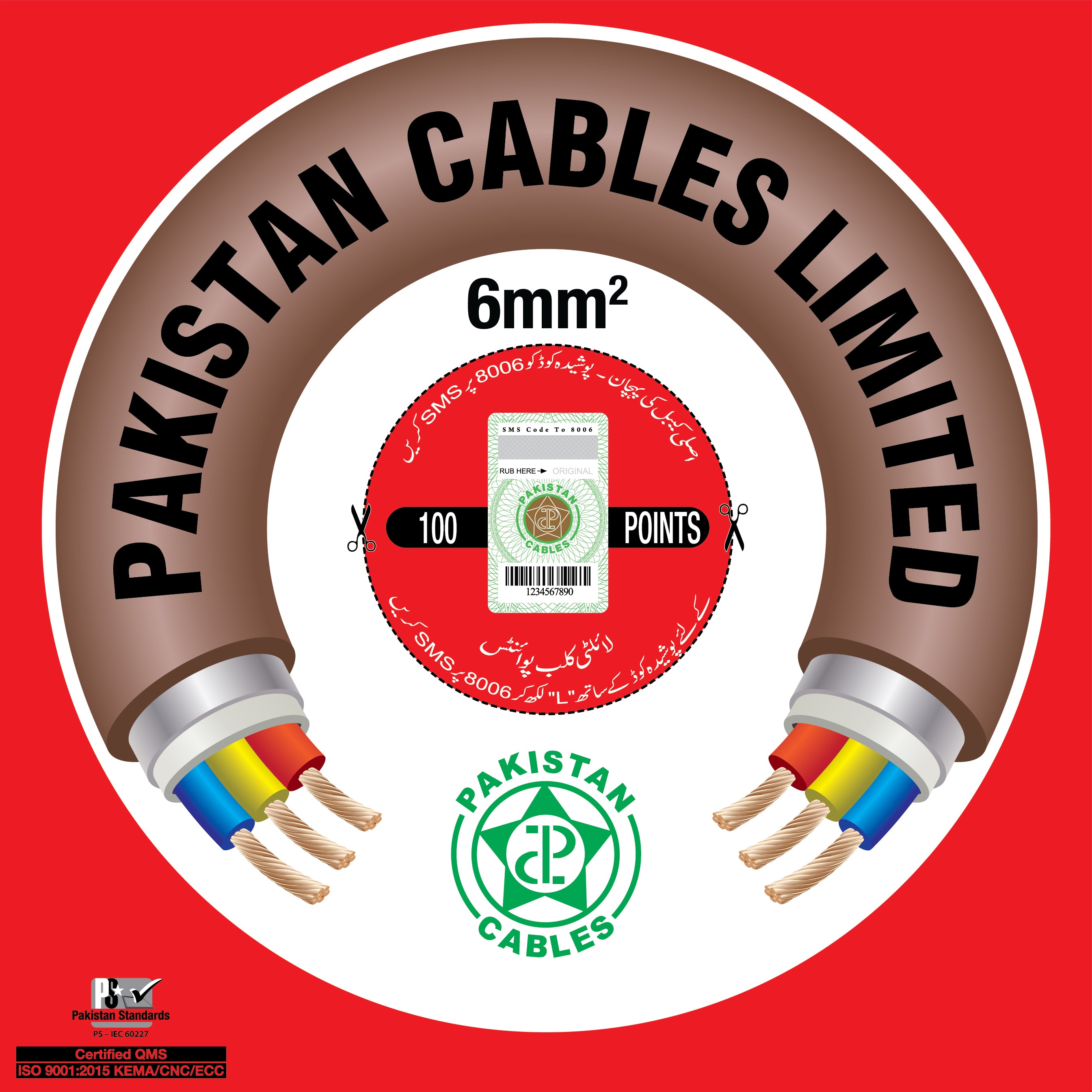

Pakistan Cables 6mm² Pure Copper Wire – 90m Coil (Main Panel & Heavy AC Wiring)
Rs.36,326.00
Description
Pakistan Cables 6mm² pure copper wire is Pakistan's heaviest duty single core cable for main electrical panels, 3-5 ton ACs, large water pumps, industrial feeders, and solar main lines. 99.99% pure copper conductor with flame-retardant PVC insulation (450/750V rating) – the choice for professional electricians handling high-current installations across Karachi, Lahore, Faisalabad, and nationwide.
Why Choose 6mm²? Industrial Grade Power (35-45A capacity)
-
Main service entrance from meter to panel
-
3-5 ton central AC units or multiple split ACs
-
3-5HP water pumps and motors
-
Factory/shop main feeders
-
Solar main DC cables (inverter to combiner box)
-
Heavy machinery circuits under 20kW
Pakistan Cables 6mm² Technical Specifications
Conductor: 99.99% Pure Copper (multi-strand high conductivity)
Cross Section: 6mm² nominal (approx. 10 AWG equivalent)
Gauge: 6mm² single core general wiring
Insulation: FR PVC (Flame Retardant 70°C max)
Voltage Rating: 450/750V AC (safe for 250/440V systems)
Coil Length: Exact 90 meters factory guaranteed
Ampacity: 35-45A in conduit (PVC insulated, ambient 30°C)
Colors Available: Red, Yellow, Blue, Black, Green/Yellow
Standards: BS 6004, IEC 60227, Pakistan Cables certified
Weight: 5.5-6.5kg per full 90m coil
Real-World Load Capacity
✅ 3-5 ton central AC systems
✅ 3HP water pump + pressure tank
✅ Main panel feeder (100-150 sqm house)
✅ 15-20kW workshop lighting + machines
✅ Solar array main DC line (up to 50A)
✅ Multiple 2-ton split ACs (check distance)Critical: Always size breakers and cable length with qualified electrician. Voltage drop <3% recommended.
6mm vs 4mm vs 10mm² – Perfect Sizing Guide
| Load Type | 4mm² | 6mm² | 10mm² |
|---|---|---|---|
| Single 3-ton AC | ✅ Short run | ✅ Long run | Overkill |
| 5-ton Central AC | ⚠️ Risky | ✅ Perfect | Good |
| 3HP Pump | ✅ Short | ✅ Long | Overkill |
| Main Panel Feed | ❌ No | ✅ Yes | Better |
| Solar 50A | ⚠️ Limit | ✅ Yes | Perfect |
Pakistan Cables 6mm² vs Local/Chinese Cables
✅ 99.99% Pure Cu | ❌ 88-94% Mixed | ❌ CCA Copper
✅ Exact 90m | ❌ 82-87m | ❌ 75-85m
✅ FR PVC 70°C | ❌ Basic PVC | ❌ Thin PVC
✅ BS 6004 Cert | ❌ None | ❌ Fake cert
✅ 30yr Lifespan | ❌ 10-12yr | ❌ 5-8yr
Professional Installation Requirements
1. 40A-50A breakers ONLY (no 63A)
2. 25-32mm PVC conduit MANDATORY
3. Professional termination (no loose strands)
4. Torque specs: 2.5-3.0 Nm terminals
5. Earth wire 4mm² minimum alongside
6. Megger test before energizing
7. Local PEC inspection for commercial
Frequently Asked Questions
Q: What major appliances can 6mm² handle?
A: 3-5 ton ACs, 3HP pumps, main panel feeds up to 150 sqm houses. Exact sizing depends on distance and ambient temperature.
Q: Solid or stranded conductor?
A: Pakistan Cables 6mm² is stranded for flexibility in long pulls and conduit bends. Solid available in some earthing variants.
Q: Coil length guaranteed?
A: Exact 90 meters factory-measured. Pakistan Cables never shorts coils.
Q: Pure copper verified?
A: 99.99% pure copper – BS 6004 certified, third-party tested conductivity.
Q: Solar panel main line safe?
A: Yes for DC main lines up to 50A (panels to combiner box). Use armoured for outdoor runs >20m.
Q: Can replace main 10mm wire?
A: Often yes for houses <200 sqm with 40-50A main breaker. Confirm voltage drop calculation.
Q: Karachi commercial delivery?
A: FREE same/next day Karachi. Lahore 2 days, other cities 3-4 days COD.
Q: Compared to 4mm²?
A: 6mm² handles 50% more current with less voltage drop. Use when 4mm² breaker trips frequently.
Buy Genuine Pakistan Cables 6mm² – ChachaTrader Pro Grade
ADD TO CART – Best Price Pakistan Cables 6mm Wire 90m Coil
ChachaTrader Commercial Advantages:
✅ Factory-sealed genuine Pakistan Cables
✅ Exact 90m coils verified weight
✅ FREE Karachi bulk delivery
✅ Nationwide COD contractors welcome
✅ 7-day returns unused coils
✅ Free technical consultation for sizing
Colors Available: Red | Yellow | Blue | Black | Green/Yellow (Earth)
Contractor Special: 10+ coils = volume discount + free conduit pipe!
