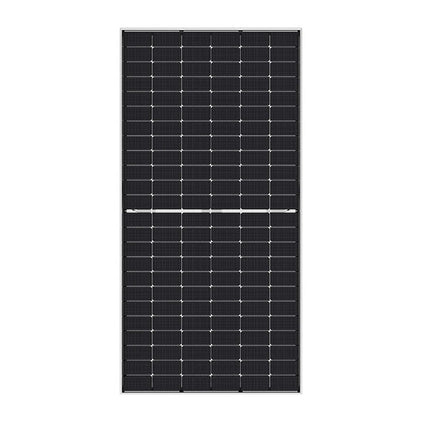

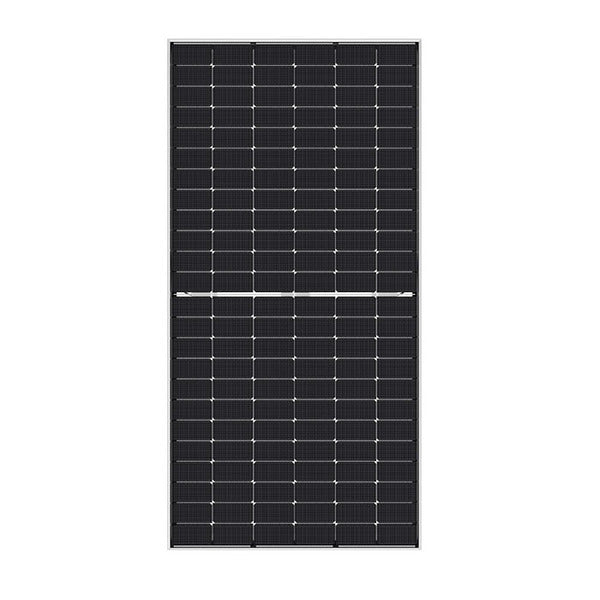

Jinko Solar Panel N-Type Bifacial 585 Watt
Rs.19,500.00
🔥 Loading...
👀 Loading viewers...
Description
Jinko Solar Panel N-Type Bifacial 585 Watt
Technical Specifications
Watts PTC
441
Watts STC
585 W
Cells
144
Technology
N-Type TOPCon
Open Circuit Voltage (Voc)
52.7
Short Circuit Current (Isc)
14.01
Max Power Voltage (Vmpp)
44.02
Max Power Current (Impp)
13.29
Max Current
30 A
Efficiency
22.65
Frame Material
Anodized Aluminum Alloy
Frame Thickness (mm)
30
Frame Color
Silver
Connector
JK03M
Output Cables
12 AWG, 1400mm
Temp Coefficient (Pmpp)
-0.29
Temp Coefficient (Voc)
-0.25
Fire Classification (Type)
Type 29
General Information
Dimensions
2278 L x 1134 W x 30 H mm
Weight
68.34 Lbs.
Series
Eagle 72 G6b
Approvals
ISO9001:2015 Quality Standards
ISO14001:2015 Environmental Standards
IEC61215
IEC61730 certified products
ISO45001: 2018 Occupational Health & Safety Standards
UL61730 certified products
