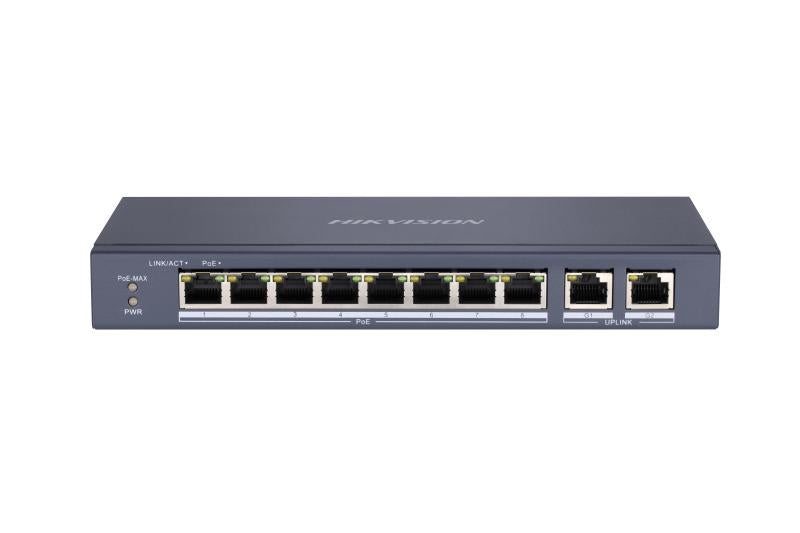

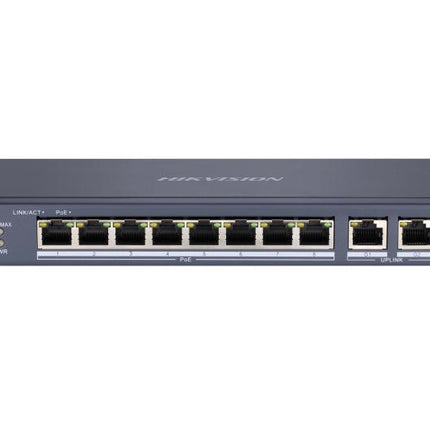

Hikvision DS-3E0310P-E/M 8-Port PoE Network Switch

The Hikvision DS-3E0310P-E/M 8-Port PoE Switch is a reliable networking device designed for IP CCTV surveillance systems. It allows users to connect and power multiple IP cameras through a single switch using Power over Ethernet (PoE) technology.

This switch includes 8 PoE ports and 2 Gigabit uplink ports, making it ideal for connecting IP cameras, NVR systems, and network devices in homes, offices, shops, warehouses, and commercial buildings.

With a durable metal housing and plug-and-play installation, the switch ensures stable network performance for professional CCTV installations.

Key Features

✔ 8 PoE Ports for CCTV Cameras
Supports powering up to 8 IP cameras through Ethernet cables.

✔ 2 Gigabit Uplink Ports
High-speed uplink ports connect the switch to routers, NVRs, or network infrastructure.

✔ Power over Ethernet (PoE)
Transmits power and data through a single cable, reducing wiring complexity.

✔ Long-Range Transmission
Supports extended transmission up to 300 meters in extend mode.

✔ 30W Power per Port
Each PoE port can deliver up to 30W, supporting most IP cameras.

✔ Plug & Play Operation
Unmanaged switch with no configuration required.

✔ 6KV Surge Protection
Protects connected devices from electrical surges.

✔ Durable Metal Housing
Fan-free design ensures stable and quiet operation.

Technical Specifications

• Brand: Hikvision

• Model: DS-3E0310P-E/M

• PoE Ports: 8 × 10/100 Mbps RJ45 PoE ports

• Uplink Ports: 2 × Gigabit RJ45 ports

• PoE Standard: IEEE 802.3af / IEEE 802.3at

• Max Power per Port: 30 W

• Total PoE Power Budget: 60 W

• Switching Capacity: 5.6 Gbps

• Packet Forwarding Rate: 4.17 Mpps

• MAC Address Table: 8K

• Power Supply: 48V DC

• Surge Protection: 6 KV

• Installation: Desktop or wall-mounted

Ideal Applications

This PoE switch is commonly used for:

• CCTV surveillance systems

• IP camera installations

• Office security networks

• Retail shop monitoring systems

• Home security setups

• Warehouse surveillance

Compatible Devices

The switch works with:

• IP CCTV cameras

• Network Video Recorders (NVR)

• Wireless access points

• Network routers and switches

It is widely used with Hikvision IP cameras and can be monitored using the Hik-Connect platform when connected to an NVR.

Buy Hikvision DS-3E0310P-E/M PoE Switch in Pakistan

You can buy the Hikvision DS-3E0310P-E/M 8-Port PoE Switch online from Chacha Trader at competitive prices. It is an essential networking component for installing professional CCTV surveillance systems in Pakistan.

Browse our CCTV cameras and security accessories collection to complete your surveillance setup.
